Hydraulic Puller

By using them correctly during installation and maintenance, hydraulic pullers can help you extend the life of the bearings in your applications.

Showing 1–16 of 20 results

  • Hvac Hub Adapters & Fan Removal Adapter

    HVAC Hub Adapters  Our unique hub collar design allows our general purpose puller to be utilized on chillers, freezers, condensers, ice machines, furnace fans, ventilation fans, auto heaters, AC fans, and more. The collar adapter secures our Model 104 puller to hubs up to a 3-inch diameter. Set screws grip the hub to hold and…

  • Hydraulic Inbuilt Cage Puller Aibc (Eco Series)

    MModel Number. Capacity (Tonne) Stroke (mm) Max Spread
    A (mm)
    Max. Reach
    B (mm)
    Thickness of
    Jaw C (mm)
    Thickness of Jaw
    Tip D (mm)
    Height H (mm) Weight
    (kg)
    AIBC-5 5 50 200 166 140 15 480 13.8
    AIBC-10 10 60 300 204 170 16 510 15.1
    AIBC-20 20 70 400 238 205 16 570 20.4

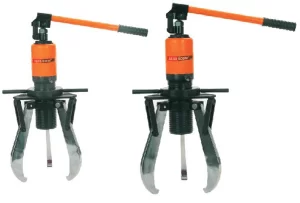

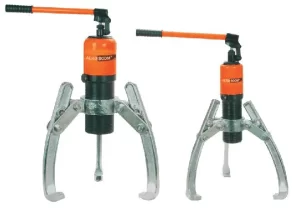

  • Hydraulic Inbuilt Puller

    Model Number Capacity (Ton) Stroke A (mm) Reach (mm) Spread (mm) Tip Weight (Kg)
    B C D

    CK-4

    4 60 185 255 42 22 84 6.7
    Ck-6 6 70 220 330 45 23 94 7.4
    CK-8 8 85 230 350 50 25 122 8.2
    CK-10 10 85 270 375 60 28 118 10.5
    CK-12 12 85 270 375 60 28 118 10.9
    CK-20 20 111 360 520 80 40 160 34.7
    CK-30 30 111 360  550 98 50 155 46.7



  • Hydraulic Inbuilt Puller Aib (Eco Series)

    MModel Number. Capacity (Tonne) Stroke (mm) JAW No. Max Spread
    A (mm)
    Max. Reach
    B (mm)
    Thickness of Jaw
    C (mm)
    Thickness of Jaw Tip D (mm) Height
    H (mm)
    Weight
    (kg)
    AIB-05 5 50 3 200 140 26 11 400 7.6
    AIB-10 10 60 3 250 170 30 13 500 10.1
    AIB-20 20 70 3 350 205 33 18 580 18.6
    AIB-30 30 70 3 400 220 35 20 610 24.2
    AIB-50 50 60 3 500 250 40 25 620 42.9

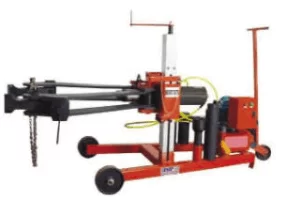

  • Hydraulic Puller 100 Ton & 50 Ton

    Model Cylinder output

    (Tons)

    Minimum Spread

    (mm)

    Minimum Reach

    (Deep drawing)

    (mm)

    Maximum Spread

    (mm)

    Maximum Reach

    ­(Deep drawing)

    (mm)

    Full

    Length

    (mm)

    ­Center height adjustment

    (mm)

    Cylinder stroke

    (mm)

    Single/Three Phase Power Source
    APH-100 100 381 860 1219 1060 3015 305-915 250 220V

    380V



    Full Automatic Vehicular Hydraulic  Puller (50T)

    1. Hydraulic tool with single/double acting hydraulic design suitable for the disassembly of large shafts and aperture parts.
    2. Full automatic hydraulic design-full automatic hydraulic elevating, automatic holding and pulling of work piece.
    3. Wheeled cart for easy movement, capability of changing the operating site at any time.
    4. 2-pawl or 3-pawl drawing wheel structure, drawing bearing for drawing wheel disc attached.
    5. Labor-saving operation, high efficiency.
    6. Can be customized as per customer requirement.
    Model Cylinder output

    (Tons)

    Minimum Spread

    (mm)

    Minimum Reach

    (Deep drawing)

    (mm)

    Maximum Spread

    (mm)

    Maximum Reach

    (Deep drawing)

    (mm)

    Full Length

    (mm)

    ­Centre height adjustment

    (mm)

    Cylinder stroke

    (mm)

    Single/Three phase power source
    AHP-553 50 381 100 1220 178 2286 450-1120 337 220V

    380V

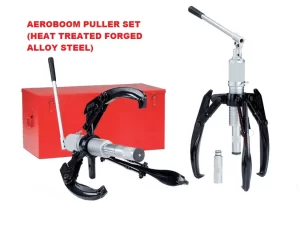

  • Hydraulic Puller Package Set

    TECHNICAL DATA:

    Capacity Model No. Reach (Max.mm) Spread (Max.mm) Stroke (mm) Pump Tip (mm) Jaw Tip (mm) Weight (Kg.)
    C D H E F G A B C
    4 TON ABPM420 185/250 55 255/110 60 42 22 84 11 6 22 4.5/8.5
    6 TON ABPM620 220/270 95 330/180 70 45 23 94 13 10 22 5.5/11.5
    8 TON ABPM820 230/270 95 350/220 85 50 25 122 11 10 25 6.5/12.6
    12 TON ABPM1220 270/380 225 375/290 85 60 28 118 14 10 29 8.0/18.0

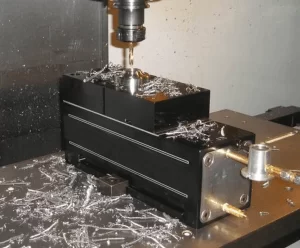

  • Machinist Vise

    Machinist Vise Posi Lock’s MVP5 was designed by our manufacturing division, with all the needs of machinists in mind. Its safe, fast, and effortless operation is guaranteed to enhance efficiency, productivity, and worker satisfaction. Such is our confidence in this devise, we us it in every CNC machine! Features and Benefits: Built-in power source 0–6,000…

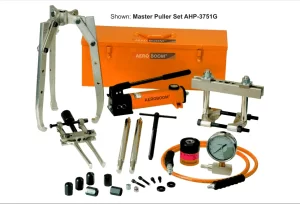

  • Master Puller Sets

    Grip Puller Set Capacity** 8 ton 20 ton 30 ton 50 ton
    Model Number AHP-1752 AHP-2751G AHP-3751G AHP-5751G
    Included Hydraulics Set Weight 37 Kg 90 kg 172 kg 298 kg
    Hand Pump P-105 P-109 P-109 P-123
    Cylinder ARCH-123 ARCH-202 ARCH-302 ARCH-603
    Saddle ASP-2015 ASP-3015 ASP-6016
    Hose AH Series AH Series AH Series AH Series
    Gauge AG-1510 AG-1510 AG-1510 AG-1510
    Gauge Adaptor AGA-3 AGA-3 AGA-3 AGA-3
    Included Pullers
    10 Grip Puller AHP-1762 AHP-252 AHP-352 AHP-552
    20 Cross Bearing Puller AHP-1772 AHP-262 AHP-362 AHP-562
    30 Bearing Cup Puller AHP-180 AHP-280 AHP-380 AHP-580
    40 Bearing Puller AHP-181 AHP-282 AHP-382 AHP-582
    Case C-6 C-350 C-350 C-750

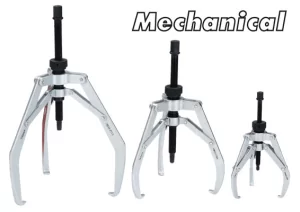

  • Mechanical Pullers

    Model Number Capacity (ton) Reach (mm) Spread (mm) Stroke (mm) Spindle (thread) Net Weight (kg) Gross Weight (kg)
    PK-130  3/5 40 130 105 M14x1.5 1.95 2.15
    PK-230  5/8 50 230 150 M22x2.0 4.7 5.26
    PK-295 5/10. 120 295 230 M22x2.0 5.95 6.75

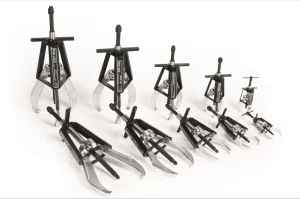

  • Mechanical Pullers 1 To 40 Tons

    Model Number Capacity (ton) Number of Jaws Centre Bolt Dia. A (mm) Max. Reach B (mm) Spread Range C (mm) Max. Torque (N.m) Weight (kg)
    202 1 2 7.9 57 6.4 to 82.6 0.28
    102 1 3 7.9 57 6.4 to 82.6 0.31
    203 2 2 9.4 76 6.4 to 114.3 0.51
    103 2 3 9.4 76 6.4 to 114.3 0.59
    204 2 2 12.7 102 13 to 127 27 1.5
    104 5 3 12.7 102 13 to 127 54 1.9
    206 6 2 15.8 152 13 to 178 101 3.2
    106 10 3 15.8 152 13 to 178 176 3.6
    208 12 2 19 203 19 to 305 203 5.4
    108 17 3 19 203 19 to 305 297 6.4
    210 14 2 19 246 25 to 381 237 5.9
    110 20 3 19 246 25 to 381 372 7.3
    213 25 2 28.5 305 64 to 457 642 17.3
    113 30 3 28.5 305 64 to 457 811 19.9
    216 35 2 32 356 76 to 636 1081 28.9
    116 40 3 32 356 76 to 636 1149 30.9

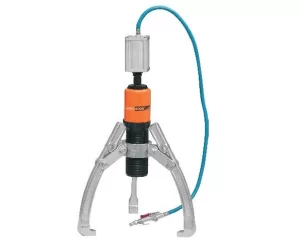

  • Pneumatic Pullers (Eco Series)

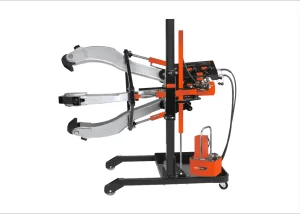

  • Posi Lock 100-ton Hydraulic Pullers

    Posi Lock 100-Ton Hydraulic Pullers Posi Lock’s 100-ton hydraulic pullers provide maximum pulling force in applications requiring high-force removal of large gears, pulleys, wheels, sleeves and other press- t parts. Features and Benefits: 10,000 PSI electric two-stage pump Remote jog switch with 10-foot cord (3.05 m) 100-ton cylinder 10,000 PSI with spring return (10.25-inch stroke) Hydraulic-powered lift…

  • Posi Lock Hydraulic Puller Pha Series

  • Model Number. Air Pressure
    (BAR)
    Puller Capacity (Tonne) JAW No. Max. Stroke (mm) Max Spread A (mm) Max. Reach
    B (mm)
    Thickness of
    Jaw C (mm)
    Thickness of
    Jaw Tip D (mm)
    Weight
    (kg)
    APP-5 8 5 3 50 200 140 26 11 7.3
    APP-10 8 10 3 60 250 170 30 13 10.9
    APP-20 8 20 3 70 350 205 33 18 19.2
    APP-30 8 30 3 70 400 220 35 20 25.5
    APP-50 8 50 3 60 500 250 40 25 44.2
    Model Number Capacity (ton) Number of Jaws Reach (mm) Spread (mm)
    PHA-206 5 2 152.4 12.7 to 203.2
    PHA-106 5 3 152.4 12.7 to 203.2
    PHA-208 10 2 203 19 to 305
    PHA-108 10 3 203 19 to 305
    PHA-210 15 2 254 25 to 381
    PHA-110 15 3 254 25 to 381
    PHA-213 25 2 305 64 to 457
    PHA-113 25 3 305 64 to 457
    PHA-216 50 2 356 76 to 635
    PHA-116 50 3 356 76 to 635
  • Posi Lock Hydraulic Puller Phb Series

    Model Number

    Capacity (ton) Number of Jaws Reach (mm) Spread (mm)
    PHB-206 5 2 152.4

    12.7 to 203.2

    PHB-106

    5 3 152.4 12.7 to 203.2
    PHB-208 10 2 203

    19 to 305

    PHB-108

    10 3 203 19 to 305
    PHB-210 15 2 254

    25 to 381

    PHB-110

    15 3 254 25 to 381
    PHB-213 25 2 305

    64 to 457

    PHB-113

    25 3 305 64 to 457
    PHB-216 50 2 356

    76 to 635

    PHB-116

    50 3 356

    76 to 635

  • Posi Lock Hydraulic Puller Phes Series

    Model Number

    Capacity (ton) Number of Jaws Reach (mm) Spread (mm)
    PHES-206 5 2 152.4

    12.7 to 203.2

    PHES-106

    5 3 152.4 12.7 to 203.2

    PHES-208

    10 2 203

    19 to 305

    PHES-108 10 3 203

    19 to 305

    PHES-210

    15 2 254 25 to 381

    PHES-110

    15 3 254 25 to 381
    PHES-213 25 2 305

    64 to 457

    PHES-113 25 3 305

    64 to 457

    PHES-216

    50 2 356 76 to 635
    PHES-116 50 3 356

    76 to 635

  • Posi Lock Hydraulic Puller Phms Series

    Model Number Capacity (ton) Number of Jaws Reach (mm) Spread (mm)
    PHMS-206 5 2 152.4 12.7 to 203.2
    PHMS-106 5 3 152.4 12.7 to 203.2
    PHMS-208 10 2 203 19 to 305
    PHMS-108 10 3 203 19 to 305
    PHMS-210 15 2 254 25 to 381
    PHMS-110 15 3 254 25 to 381
    PHMS-213 25 2 305 64 to 457
    PHMS-113 25 3 305 64 to 457
    PHMS-216 50 2 356 76 to 635
    PHMS-116 50 3 356 76 to 635
  • Chindalia Industrial Products Limited offers full Sales, Service rental capabilities from our Service Centers located strategically all over India.
