Mechanical Pullers 1 To 40 Tons

Model Number Capacity (ton) Number of Jaws Centre Bolt Dia. A (mm) Max. Reach B (mm) Spread Range C (mm) Max. Torque (N.m) Weight (kg)
202 1 2 7.9 57 6.4 to 82.6 0.28
102 1 3 7.9 57 6.4 to 82.6 0.31
203 2 2 9.4 76 6.4 to 114.3 0.51
103 2 3 9.4 76 6.4 to 114.3 0.59
204 2 2 12.7 102 13 to 127 27 1.5
104 5 3 12.7 102 13 to 127 54 1.9
206 6 2 15.8 152 13 to 178 101 3.2
106 10 3 15.8 152 13 to 178 176 3.6
208 12 2 19 203 19 to 305 203 5.4
108 17 3 19 203 19 to 305 297 6.4
210 14 2 19 246 25 to 381 237 5.9
110 20 3 19 246 25 to 381 372 7.3
213 25 2 28.5 305 64 to 457 642 17.3
113 30 3 28.5 305 64 to 457 811 19.9
216 35 2 32 356 76 to 636 1081 28.9
116 40 3 32 356 76 to 636 1149 30.9

Description

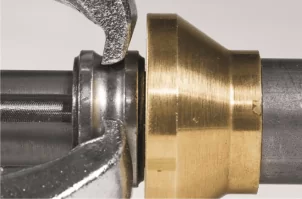

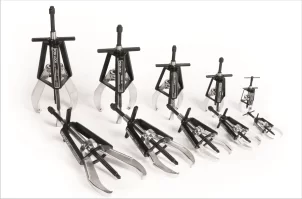

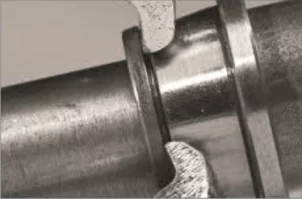

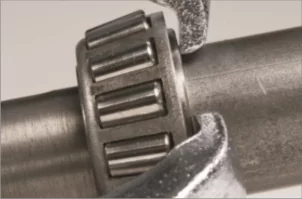

The Posi Lock® line of quality manual gear and bearing pullers sets the standard for quickness, ease and convenience. With Posi Lock, it’s strictly a one-man operation. The T-handle and Cage control the jaws at all times. This means that the opening, closing, locking and aligning of the jaws are all done automatically by simply turning the T-handle. Posi Lock® pullers have been designed for effective removal of stubborn gears, bearings, pulleys, and other press ? t items from any machine in diverse industries. Shown here is the complete line of 2- and 3-jaw Posi Lock pullers, ranging from 1- to 40-ton capacity.
