Bolting Tools

Chindalia manufacturer of bolting tools and bolting products, Hydraulic Torque Wrenches, Hydraulic Bolt Tensioners, Pneumatic Torque Wrenches.

Showing 1–16 of 26 results

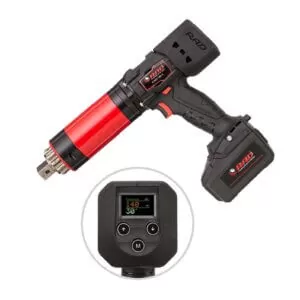

  • B-Rad BL S

    PART NUMBER TOOL MODEL DRIVE SIZE TORQUE LOW (Nim) HIGH RPM WEIGHT (Kg) NOISE LEVEL DIMENSION A (mm) DIMENSION B {mm) DIMENSION C (mm) DIMENSION D (mm)
    31801 B-RADBL700 s 0.75″ 70 700 21 4.2 85 311 63 70 254
    31803 B-RADBL1400 S 0.75″ 135 1400 9.6 4.3 85 311 63 70 254
    31805 B-RAD BL 2000 S 1.0″ 200 2000 5.6 4.9 85 321 69 70 254
    31807 B-RADBL4000 S 1.0″ 400 4000 3.0 7.2 85 337 81 81 257
    31809 B-RAD BL 7000 S 1.5″ 700 7000 1.9 9.8 85 362 95 95 267

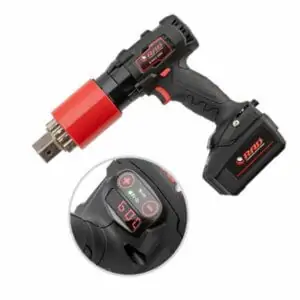

  • B-Rad BL Select

    PART NUMBER TOOL MODEL DRIVE SIZE TORQUE LOW (Nm) HIGH RPM WEIGHT (Kg) DIMENSION A (mm) DIMENSION B (mm) DIMENSION C (mm) DIMENSION D (mm)
    28264 B-RAD BL SELECT 700 0.75″ 170 700 21.5 3.5 231 63 67 262
    28266 B-RAD BL SELECT 1400 0.75″ 270 1400 10.5 3.5 231 63 67 262
    28267 B-RAD BL SELECT 1400-2 0.75″ 270 1400 71 4.3 279 63 67 262
    28268 B-RAD BL SELECT 2000 1.0″ 400 2000 6 4.0 244 69 69 262
    28269 B-RAD BL SELECT 2000-2 1.0″ 400 2000 19.5 4.9 298 69 69 262
    28270 B-RAD BL SELECT 4000 1.0″ 800 4000 3 6.0 285 81 81 266
    28271 B-RAD BL SELECT 4000-2 1.0″ 800 4000 20 6.7 337 81 81 266
    28272 B-RAD BL SELECT 7000 1.5″ 1350 7000 2.1 8.8 295 95 95 272

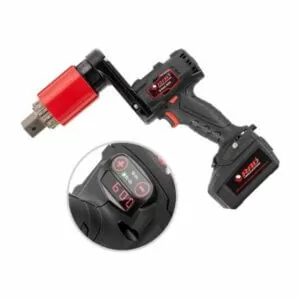

  • B-Rad BL Select Offset

    PART NUMBER TOOL MODEL DRIVE SIZE TORQUE LOW (Nm) HIGH RPM WEIGHT (Kg) DIMENSION A (mm) DIMENSION B (mm) DIMENSION C (mm) DIMENSION D (mm) DIMENSION E (mm) DIMENSION F (mm)
    30003 B-RAD BL SELECT 700 OFFSET 0.757 170 700 21.5 3.9 260 155 63 262 83 83
    29574 B-RAD BL SELECT 1400 OFFSET 0.751″ 270 1400 10.5 3.9 260 165 63 262 83 83
    30005 B-RAD BL SELECT 2000 OFFSET 1.0″ 400 2000 6 4.4 277 172 69 262 86 83
    30007 B-RAD BL SELECT 4000 OFFSET 1.0 800 4000 3 6.4 312 208 81 262 92 83
    30009 B-RAD BL SELECT 7000 OFFSET 1.5″ 1350 7000 2.1 9.2 335 230 95 262 100 83

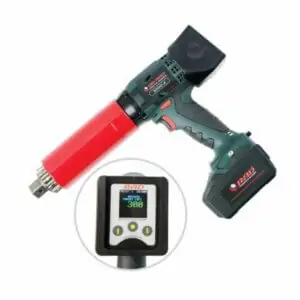

  • Digital B-Rad

    PART NUMBER DESCRIPTION
    26400 DB-RAD ANGLE OPTION
    PART NUMBER TOOL MODEL DRIVE SIZE TORQUE LOW (Nm) HIGH RPM WEIGHT (Kg) NOISE LEVEL DIMENSION A (mm) DIMENSION B (mm) DIMENSION (mm) DIMENSION D (mm)
    22876 DB-RAD 700-2 0.75″ 70 700 59 5.0 80 db 321 63 63 279
    22878 DB-RAD 1400-2 0.75″ 140 1400 19 5.2 80 db 330 63 63 279
    22880 DB-RAD 2000-2 1.0″ 200 2000 17 5.3 80 db 330 68 68 279
  • E-Rad Blu

    PART NUMBER TOOL MODEL DRIVE SIZE TORQUE LOW (Nm) HIGH RPM WEIGHT (Kg) DIMENSION A (mm) DIMENSION B (mm) DIMENSION C (mm) DIMENSION D (mm)
    21985 E-RAD BLU 950 0.75″ 135 950 20 5.4 340 65 78 275
    24162 E-RAD BLU 2000 1.0″ 270 2000 9 5.9 337 69 78 275
    21986 E-RAD BLU 3400 COMP 1.0″ 340 3400 5.5 8.1 380 76 78 275
    22434 E-RAD BLU 3400-90 Degree 1.0″ 340 3400 6 8.3 210 76 78 300
    21987 E-RAD BLU 4000 1.0″ 675 4000 5.5 10.6 430 83 88 287
    21988 E-RAD BLU 8000 1.5″ 2000 8000 4 13 419 100 100 287
    21989 E-RAD BLU 10K 1.5″ 2000 10000 1.5 15 432 105 105 287
    21224 *E-RAD BLU 15K 1.5″ 4000 15000 1.3 20 465 127 127 287

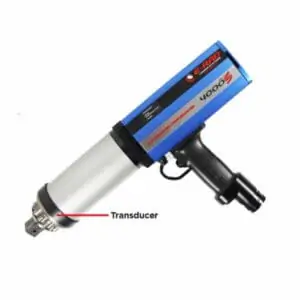

  • E-Rad Blu-s

    PART NUMBER TOOL MODEL DRIVE SIZE TORQUE LOW (Nm) HIGH RPM WEIGHT (Kg) DIMENSION A (mm) DIMENSION B (mm) DIMENSION C (mm) DIMENSION D (mm)
    26937 E-RAD BLU 950-S-M 0.75″ 135 950 15 5.9 380 72 77 270.5
    26938 E-RAD BLU 3400-S-M COMP 1.0″ 340 3400 5 8.6 412 87 77 270.5
    22759 E-RAD BLU 4000-S-M 1.0″ 675 4000 5 11.1 451 95 88 287
    25282 E-RAD BLU 8000-S-M 1.5″ 1385 8100 2.1 13.6 450 110.5 88 287
    26939 E-RAD BLU 10K-S-M 1.5″ 2000 10,000 1.5 15.4 471 114 88 287
    29315 E-RAD BLU 15K-S 1.5″ 4050 15,000 1.5 20 503 132 88 287

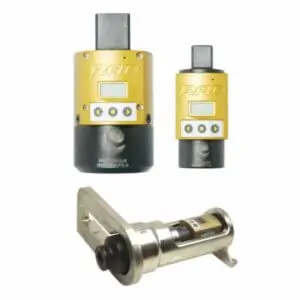

  • Rad Calibration Systems

    PART NUMBER DESCRIPTION TORQUE LOW (Nm) HIGH DRIVE SIZE WEIGHT (Kg) DIMENSION A (mm) DIMENSION B (mm) DIMENSION (mm)
    23442 RAD 1500 TRANSDUCER 100 2000 1.0″ 1.8 142 60 69
    23443 RAD 3500 TRANSDUCER 250 4750 1.5″ 4.5 171 64 102
    23444 RAD 7000 TRANSDUCER 475 9500 1.5″ 4.9 171 64 102

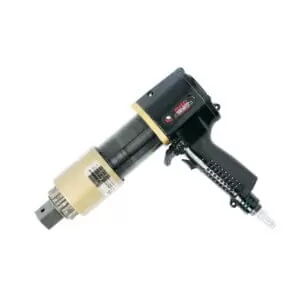

  • Rad High Speed

    PART NUMBER TOOL MODEL DRIVE SIZE TORQUE LOW (Nm) HIGH RPM WEIGHT (Kg) NOISE LEVEL DIMENSION A (mm) DIMENSION B (mm) DIMENSION C (mm) DIMENSION D (mm)
    19774 14GX-2 0.75″ 475 1400 85 4.5 80 db 261 63 70 205
    19775 20DX-2 1.0″ 700 2000 50 4.7 80 db 251 68 70 205
    19776 34GX-2 1.0″ 950 3400 44 7.5 80 db 305 78 84 254
    24952 40DD-2 1.0″ 1400 4000 49 7.3 80 db 309 81 83 254

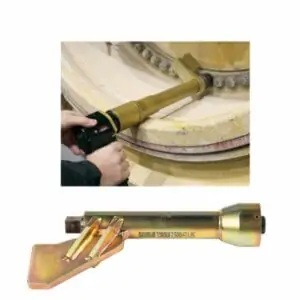

  • Rad Nose Extensions

    Available for most RAD models. Please contact us for custom inquiries.

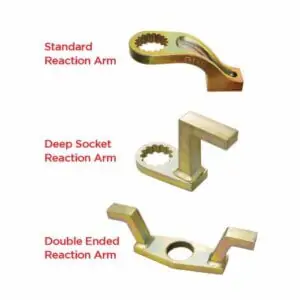

  • Rad Reaction ARMS

    Each RAD tool includes a standard reaction arm. In addition to this, you can order the below special reaction arms to ensure correct reaction for different applications. Please consult our website for dimensions and part numbers.

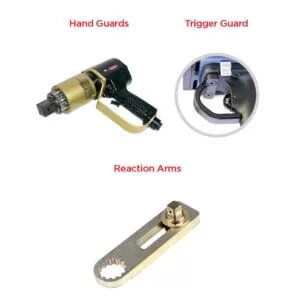

  • Rad Safety Accessories

    Ergonomics and safety are very important during the design phase of any new RAD tool. In addition to making the job more ergonomic and safe, we want our tools to be easy to ARMS use, powerful, accurate and very reliable. RAD believes safety features should not impede workplace efficiency and speed, but should make workers…

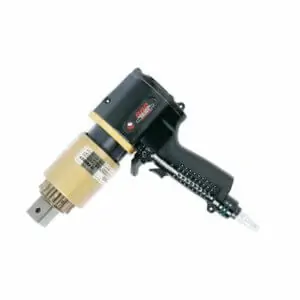

  • Rad Single Speed

    PART NUMBER TOOL MODEL DRIVE SIZE TORQUE LOW (Nm) HIGH RPM WEIGHT (Kg) NOISE LEVEL DIMENSION A (mm) DIMENSION B (mm) DIMENSION C (mm) DIMENSION D (mm)
    13573 475SL 0.75″ 70 475 65 2.7 80 db 167 61 70 222
    13539 10GX 0.75″ 150 950 30 3.6 80 db 228 63 70 228
    13549 14GX 0.75″ 275 1400 20 3.8 80 db 228 63 70 228
    19135 20DX 1.0″ 400 2000 10 4.0 80 db 203 69 70 228
    13565 34GX 1.0″ 700 3400 9 6.1 85 db 240 78 83 241
    24717 40DX 1.0″ 1200 4000 8 6.7 85 db 254 81 83 241
    13571 *46GX 1.0″ 1400 4600 12 9.0 85 db 317 86 94 274
    26133 70DX 1.5″ 2000 7000 6.7 10.6 85 db 285 95 95 264
    15805 80DX 1.5″ 2700 8000 6.6 12.4 85 db 348 101 101 276
    23229 110DX 1.5″ 3400 11000 4 13.7 85 db 308 108 108 270
    26153 150DX 1.5″ 5500 15000 3 18.9 85 db 353 127 127 281
  • Rad Smart Sockets

    PART NUMBER SMART SOCKET MODEL TORQUE LOW (Nm) HIGH DRIVE SIZE WEIGHT (Kg) DIMENSION HEIGHT (mm) DIAMETER
    20879 33mm SMART SOCKETT 200 2000 3/4″ 1.2 100 72
    21363 36mm SMART SOCKETT 200 2000 1″ 1.2 100 72
    22158 41mm SMART SOCKET™ 200 2000 1″ 1.2 87 72
    20880 46mm SMART SOCKET™ 200 2000 1″ 1.2 87 72
    20881 50mm SMART SOCKETT 400 4000 1″ 1.5 89 86
    20882 55mm SMART SOCKET” 400 4000 1″ 1.5 89 86
    20883 60mm SMART SOCKETT 400 4600 1″ 1.5 89 86
    23690 65mm SMART SOCKETT 1100 10800 1.5″ 4.0 121 115
    20884 70mm SMART SOCKETTM 1100 10800 1.5″ 4.0 121 115
    20885 80mm SMART SOCKET™ 1100 10800 1.5″ 4.0 121 115
    25657 90mm SMART SOCKET™ 1600 16000 1.5″ 5.8 130 115
    25658 100mm SMART SOCKETT 1600 16000 1.5″ 7.2 146 120
  • Rad Transducer Verification

    PART NUMBER TOOL MODEL DRIVE SIZE TORQUE LOW (Nm) HIGH RPM WEIGHT (Kg) NOISE LEVEL DIMENSION A (mm) DIMENSION B (mm) DIMENSION C (mm) DIMENSION D (mm)
    22017 10GX-R TV 0.75″ 400 950 30 5.4 80 db 317 64 70 228
    22079 14GX TV 0.75″ 275 1400 20 3.6 80 db 243 64 70 205
    22887 20DX TV 1.0″ 400 2000 10 3.9 80 db 234 68 70 205
    22018 46GX TV 1.0″ 1400 4600 12 9.0 85 db 342 86 94 266
  • Rad Wheel Nut and Otr Mining

    PART NUMBER TOOL MODEL DRIVE SIZE TORQUE LOW (Nm) HIGH RPM WEIGHT (Kg) NOISE LEVEL DIMENSION A (mm) DIMENSION B (mm) DIMENSION C (mm) DIMENSION D (mm) DIMENSION E (mm)
    13541 10GX-R 0.75″ 400 950 115 5.4 80 db 368 63 50 70 228
    14550 14GX-NX 0.75″ 275 1350 20 3.6 80 db 207 63 n/a 70 205
    20809 20NDX-R 1.0″ 400 2000 10 7.2 80 db 542 68 68 70 203
    19340 20DX-NX 1.0″ 400 2000 10 3.9 80 db 203 68 n/a 70 205
    13563 2400NGX-R 1.0″ 700 2400 10 12.4 85 db 546 76 50 83 241
  • Regulator and Tool Holder

    Carrying your RAD pneumatic tool around from job to job? Introducing the new tool holder. We decided to continue our quest for improved ergonomics by not only engineering the world’s lightest pneumatic torque wrenches with the highest power-to-weight ratio in the industry, but also by developing the industry’s most ergonomic tool holder. • Offset handle…
