TECHNICAL PARAMETERS:
| Model
No. |
Lifting Force
(ton) |
Area
(cm) |
Height
(mm) |
Insert Height
(mm) |
Max. Lifting Height
(mm) |
Max. Pressure
(bar) |
Test Pressure
(Bar) |
Weight |
| AIJ1 |
1.1 |
15×15 |
23 |
24 |
250 |
8 |
12 |
0.45 |
| AIJ5 |
5 |
25×25 |
25 |
26 |
270 |
8 |
12 |
1.9 |
| AIJ8 |
9 |
32×32 |
25 |
26 |
300 |
8 |
12 |
3 |
| AIJ10 |
11 |
37×37 |
25 |
26 |
350 |
8 |
12 |
4 |
| AIJ12 |
15.5 |
45×45 |
25 |
26 |
370 |
8 |
12 |
6.2 |
| AIJ20 |
20 |
50×50 |
25 |
26 |
390 |
8 |
12 |
7.2 |
| AIJ24 |
25 |
55×55 |
25 |
26 |
415 |
8 |
12 |
8.8 |
| AIJ28 |
29 |
60×60 |
27 |
28 |
430 |
8 |
12 |
10.5 |
| AIJ32 |
35 |
65×65 |
28 |
29 |
450 |
8 |
12 |
15 |
| AIJ40 |
43 |
75×75 |
28 |
29 |
455 |
8 |
12 |
18 |
| AIJ42 |
46 |
85×85 |
28 |
29 |
460 |
8 |
12 |
26.4 |
| AIJ48 |
54 |
90×90 |
28 |
29 |
475 |
8 |
12 |
27.5 |
| AIJ68 |
67 |
95×95 |
28 |
29 |
480 |
8 |
12 |
31 |
| AIJ73 |
74.6 |
95×95 |
28 |
29 |
520 |
8 |
12 |
32 |
-
TECHNICAL PARAMETERS:
| Model |
ACJS6000-B |
| Impact Distance |
442mm (17.4in) |
| Weight of Impact Hammer |
=6.7kg (4.7lbs) |
| Total Weight |
=19.6kg (43.2lbs) |
| Dimension (L*W*H) |
782x72x70mm |
-
TECHNICAL PARAMETERS:
| Model |
Senter-I |
Senter-II |
| Handle Force Needed |
0.8 KN (180lbs) |
0.8 KN (180lbs) |
| Prizing up Force for Door |
4 KN (900lbs) |
4 KN (900lbs) |
| Prizing up Force for Lock |
10 KN (2250lbs) |
10 KN (2250lbs) |
| Nail Pulling Out Force |
10 KN (2250lbs) |
10 KN (2250lbs) |
| Plate Thickness can be cut (Q235 Material) |
1.5mm |
1.5mm |
| Plate Thickness can be Drilled (Q235 material) |
1.5mm |
1.5mm |
| Weight |
11.5 Kg (25.3lbs) |
11.5 Kg (25.3lbs) |
-

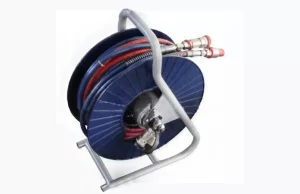

TECHNICAL PARAMETERS:
| Spec |
Inner Radius |
Working Pressure (Mpa) |
Outer Dia
(mm) |
Mix Bending |
Size of Connector |
|
(mm) |
1 |
2 |
1 |
2 |
1 |
2 |
Type ACDHG D |
S |
| 4 |
4.7 |
27 |
|
7.8 |
|
65 |
|
M12*1.25 |
14 |
| 6 |
6.3 |
22 |
24 |
9.5 |
11 |
80 |
90 |
M14*1.5 |
17 |
| 8 |
7.9 |
20 |
23 |
11 |
13 |
90 |
100 |
M16*1.5 |
19 |
| 10 |
9.6 |
18 |
25 |
12.5 |
14.5 |
100 |
110 |
M18*1.5 |
22 |
| 13 |
12.8 |
16 |
18 |
15.8 |
17.5 |
110 |
150 |
M22*1.5 |
27 |
| 16 |
16 |
11 |
13 |
18.9 |
20.5 |
150 |
180 |
M27*1.5 |
32 |
| 19 |
19.1 |
10 |
12 |
23.4 |
25 |
180 |
220 |
M30*1.5 |
36 |
| 25 |
25 |
8 |
10 |
29.7 |
32 |
220 |
250 |
M39* |
46 |
-
TECHNICAL PARAMETERS:
| Model |
AGYKM-63-100/120-A |
| Rated Working Pressure |
720 bar (10440 psi) |
| Max. Opening Force |
71 KN (15961lbs |
| Closed Length |
230mm (9.0in) |
| Opening Distance |
117mm (4.6in) |
| Times of Hand pump Beating when start without Load |
20 time |
| NO-Load Closing time (Free Fall) |
50s |
| Weight |
5.5 (12 lbs) |
| Dimension (L*W*H) |
122*100*228 |
-

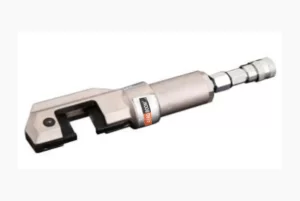

TECHNICAL PARAMETERS:
| Model |
AGYSD-63-14/28-A |
| Rated Working Pressure |
720 bar (10440 psi) |
| Max. Opening Distance Blades |
28mm (1.1in) |
| Max. Cutting capacity |
14mm (circle steel) |
| Weight |
3kg (6.6lbs) |
| Dimension (L*W*H) |
300*68*55mm |
-
TECHNICAL PARAMETERS:
| Model |
AGYFG-63/60-A |
| Rated Working Pressure |
720 bar (10440 psi) |
| Max. Opening Distance Blades |
60mm (2.3in) |
| Closing Gap of two Blades |
2mm+1mm |
| Max. Tuber Diameter can be sealed |
60mm (2.3in) |
| Max. wall Thickness be sealed |
3.5mm (0.13in) |
| Weight |
7.6kg (16.7lbs) |
| Dimension (L*W*H) |
380*212*174mm |
-
TECHNICAL PARAMETERS:
| Model |
ACJS6000-B |
| Impact Distance |
442mm (17.4in) |
| Weight of Impact Hammer |
=6.7kg (4.7lbs) |
| Total Weight |
=19.6kg (43.2lbs) |
| Dimension (L*W*H) |
782x72x70mm |
-
TECHNICAL PARAMETERS:
| Model |
AYF-A |
| Min. ARM Strength |
190mm (7.5in) |
| Max. ARM Strength |
290mm (114 lbs) |
| The Minimum cutting radius of gyration |
300mm (11.8 lbs) |
| The Max. cutting radius of gyration |
400mm (15.8lbs) |
| Max. Opening disaster |
4mm (0.16lbs) |
| Hand Force |
9N (21 lbs) |
| Weight |
0.9 Kg (1.98 lbs) |
| Dimensions (L*W*H) |
300x140x200mm |
-
TECHNICAL PARAMETERS:
| Model |
AFTK-9 |
|
| Name |
Size (mm) |
Weight (kg) |
| Claw rake components |
170x160x93 |
1.2 |
| Fire axe components |
235x160x32 |
1.1 |
| Long handled hook components |
250x93x32 |
1 |
| Fire hammer components |
140x130x60 |
1.3 |
| The sappers shovel components |
200x150x50 |
1.1 |
| Fire saw components |
308x110x2 |
0.6 |
| High shear components |
295x170x30 |
1.2 |
| Handle lever |
1000x32x32 |
1.5 |
| Extension Rod |
1000x32x32 |
1 |
| Packing box |
1100*375*125 |
2 |
| Total Weight |
|
12 |
