Clamping Tools

Features

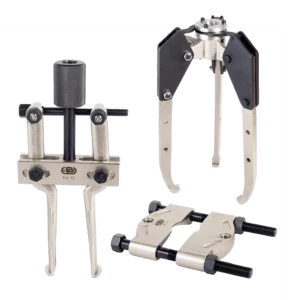

They UE extractor series consists of two parts:

– Mechanical, to be connected to the pieces which have to be extracted, it’s composed by high quality steel which ensures duration and reliability through time. It’s available in two different types, jaw type, to allow the grip on parts shrinked on axles, or tie rod type, for parts like the above ones which are equipped of attachment holes or in connection with ancillaries for external or internal use, for the extraction of peculiar parts;
– Hydraulic, it provides the necessary force, in this set are included one PN or PS pump series, one CMF cylinder with one ZTE threaded saddle, one 1,8 m long hose, one male quick coupler and one G106L manometer.

Pullers of UE range may be supplied in 5 tonnage types (5 – 10 – 20 – 30 – 50) and in 3 configurations, i.e.:

– UEC# (complete puller set) which includes all mechanical parts and hydraulic components;
– UEG# (jaw puller) consisting of 3 jaw puller and hydraulic components;
– UET# (press puller set) consisting of pressure puller internal and external puller, hydraulic components;
– UEZ# (self aligning puller) a 3 jay puller is also available for a more precise and easy positioning on the workplace.

OPERATIONAL AREAS

Indispensable when extracting gears, bearings, couplers and bushings etc. A correct assessment of the item to be extracted as well as the force required is essential for the correct selection of the puller component.

ACCESSORIES :

– UEB# carry case (except for the 50 ton model)

OPTIONS :

– Versione Z (UEC#Z) complete puller supplied with self aligning type jaw puller (UEZ) instead of the standard type jaw puller (UEG).

Features

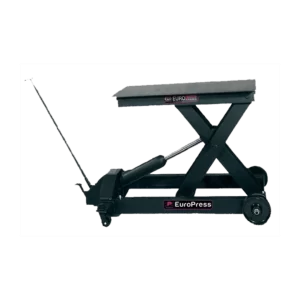

The UGT hydraulic lifting table has been designed to lift loads of up to 2 tonne. The lifting height of 880 mm enables the operator to work in a very comfortable position. The table can be locked mechanically by safety pins at three different positions. UGT tables are equipped with foot pedal for fast approach to the load. The cylinder is fitted with a safety valve and stroke limitation device. The polyamide fixed and swivel wheels are quiet in operation, and do not cause damage to floors.

OPERATIONAL AREAS

In machine shops, garages, and a variety of industrial uses.

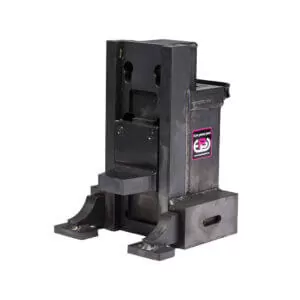

Features

This power jack with adjustable lifting toe is designed to lift large loads from very low positions. They are provided with extendable bases to ensure maximum stability. The lifting toe can be positioned at three different levels with only 25 mm minimum clearance needed. The head of the jack may also be used to lift vertically, or if the jack is turned onto its side it can be used for pushing.

OPERATIONAL AREAS

Particularly suitable for lifting, moving and levelling of machineries and heavy equipments from very low positions.

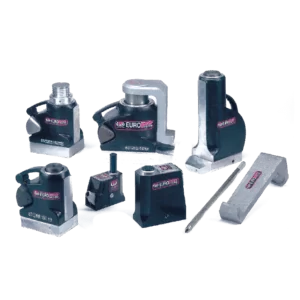

Features

UML are self contained compact lifting units with the capacity to lift up to 100 tonnes. They are portable, efficient and reliable.

They are available in three different versions:

– Standard with plain ram for vertical lifting or horizontal pushing on the front face;
– Lock ring with screwed ram and locking collar, an ideal solution to support the load mechanically for long periods;
– With claw for conventional load lifting or lifting from very low heights on the claw..

These models have extended bases for maximum stability.

All models are provided with:

– A built-in safety valve to prevent overload;
– A release valve controller by an operating lever to lift and lower the jack;
– A built-in carry handle available for models over 15 tons.

OPERATIONAL AREAS

Thanks to their light weight and easy handling these jacks are particularly versatile and suitable for many applications as: industrial, civil, ship repair, and railway industries.
