Improves torque-to-turn by up to 350% in sheet metal compared to round-body inserts.
Increases punch life compared to hexagonal geometries.
Blind hole, one-sided installation capability.
Superior pull-out performance.
Can be used for very thin sheet materials from 0.50mm (0.02″).
Provide a female thread-in application.
Can be installed in pre-coated or post-painted applications without damaging the surface.
Clamp two or more sheets.
Various platings available to increase corrosion resistance.
Large-flange head provides a load-bearing surface and reinforces the hole to prevent push-out.
Can be used as a spacer and can be supplied with an underhead seal.

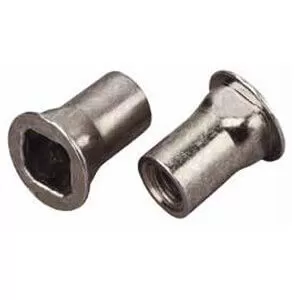

Assembly applications where the Squaresert® is used include automotive body mountings, electrical enclosures, soft sheet metal, plastics & composites, domestic appliances, and general light fabrication.
Specifications:
Thread Sizes: M5-M8
Material: Steel
Finishes: Zinc plated and clear trivalent passivated
Installed quickly by using simple handtools (less than 3 seconds).
Blind hole, one-sided installation capability.
Extra-large blind side bearing area after placing.
Higher pull out and torque-to-turn resistance.
Less radial loading of holes in brittle materials.
Less risk of cracking and de-lamination of composites.
Up to twice the grip range of standard blind inserts.
Enables a designer to reduce the size or number of fasteners in an assembly.
Covers large variations of thicknesses.
Assembly applications include automotive trim and moldings, truck and trailer sandwich sections and paneling, domestic appliances (handles, adjustable feet, and fixing points) and plastic fabrications (assembly of plastic recreation equipment).
Specifications:
Sizes: M5 – M8
Material: Low carbon steel
Headform: Large flange
VERSA-NUT – TECHNICAL DATA SHEETS
Material
Headform
Series No.
Steel
Large Flange

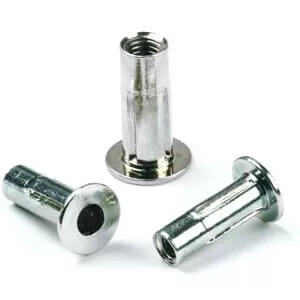

Versa-Nut VN21
Surface finish options
If you are looking for other surface finish options than shown in the above datasheets please download our
> Surface Finishes and Fastener Matrix for Threaded Inserts
This will show you what surface finish options are possible to apply to our standard fastener types as “customer specials”.
Customised Designs We can design and manufacture threaded inserts with a wide variety of forms and finishes to meet your unique assembly requirements. Please refer to this page to find examples of our customised capabilities:
> Threaded Inserts – Customised Designs
Installation Equipment Threaded Insert Equipment can be found at the following page

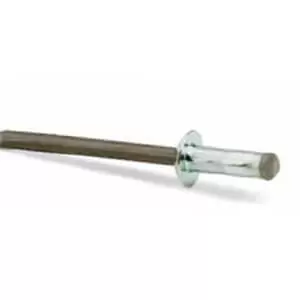

Through thick and thin, Grip Tite™ rivets feature strong, vibration-resistant joints. Even with thin sheet metal or plastics, Grip Tite™ rivets will set without any material deformation. Grip Tite™ rivets provide mandrel retention and an impressive expanded footprint on the blind side. The wide blind side expansion feature can compensate for irregular holes and spread…
