Bolting Tools

Chindalia manufacturer of bolting tools and bolting products, Hydraulic Torque Wrenches, Hydraulic Bolt Tensioners, Pneumatic Torque Wrenches.

Showing 13–17 of 17 results

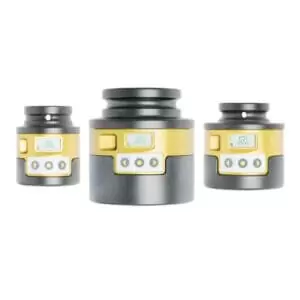

  • Rad Smart Sockets

    PART NUMBER SMART SOCKET MODEL TORQUE LOW (Nm) HIGH DRIVE SIZE WEIGHT (Kg) DIMENSION HEIGHT (mm) DIAMETER
    20879 33mm SMART SOCKETT 200 2000 3/4″ 1.2 100 72
    21363 36mm SMART SOCKETT 200 2000 1″ 1.2 100 72
    22158 41mm SMART SOCKET™ 200 2000 1″ 1.2 87 72
    20880 46mm SMART SOCKET™ 200 2000 1″ 1.2 87 72
    20881 50mm SMART SOCKETT 400 4000 1″ 1.5 89 86
    20882 55mm SMART SOCKET” 400 4000 1″ 1.5 89 86
    20883 60mm SMART SOCKETT 400 4600 1″ 1.5 89 86
    23690 65mm SMART SOCKETT 1100 10800 1.5″ 4.0 121 115
    20884 70mm SMART SOCKETTM 1100 10800 1.5″ 4.0 121 115
    20885 80mm SMART SOCKET™ 1100 10800 1.5″ 4.0 121 115
    25657 90mm SMART SOCKET™ 1600 16000 1.5″ 5.8 130 115
    25658 100mm SMART SOCKETT 1600 16000 1.5″ 7.2 146 120
    Read moreDone

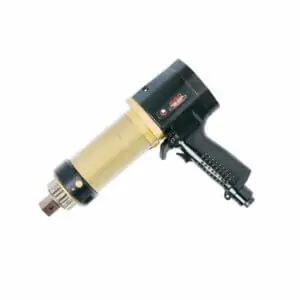

  • Rad Transducer Verification

    PART NUMBER TOOL MODEL DRIVE SIZE TORQUE LOW (Nm) HIGH RPM WEIGHT (Kg) NOISE LEVEL DIMENSION A (mm) DIMENSION B (mm) DIMENSION C (mm) DIMENSION D (mm)
    22017 10GX-R TV 0.75″ 400 950 30 5.4 80 db 317 64 70 228
    22079 14GX TV 0.75″ 275 1400 20 3.6 80 db 243 64 70 205
    22887 20DX TV 1.0″ 400 2000 10 3.9 80 db 234 68 70 205
    22018 46GX TV 1.0″ 1400 4600 12 9.0 85 db 342 86 94 266
    Read moreDone

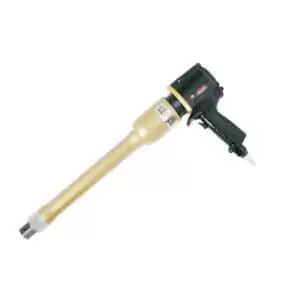

  • Rad Wheel Nut and Otr Mining

    PART NUMBER TOOL MODEL DRIVE SIZE TORQUE LOW (Nm) HIGH RPM WEIGHT (Kg) NOISE LEVEL DIMENSION A (mm) DIMENSION B (mm) DIMENSION C (mm) DIMENSION D (mm) DIMENSION E (mm)
    13541 10GX-R 0.75″ 400 950 115 5.4 80 db 368 63 50 70 228
    14550 14GX-NX 0.75″ 275 1350 20 3.6 80 db 207 63 n/a 70 205
    20809 20NDX-R 1.0″ 400 2000 10 7.2 80 db 542 68 68 70 203
    19340 20DX-NX 1.0″ 400 2000 10 3.9 80 db 203 68 n/a 70 205
    13563 2400NGX-R 1.0″ 700 2400 10 12.4 85 db 546 76 50 83 241
    Read moreDone

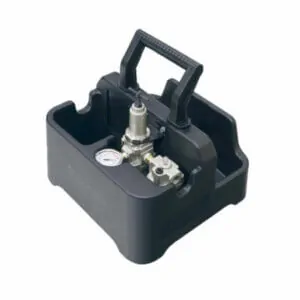

  • Regulator and Tool Holder

    Carrying your RAD pneumatic tool around from job to job? Introducing the new tool holder. We decided to continue our quest for improved ergonomics by not only engineering the world’s lightest pneumatic torque wrenches with the highest power-to-weight ratio in the industry, but also by developing the industry’s most ergonomic tool holder. • Offset handle…

    Read moreDone

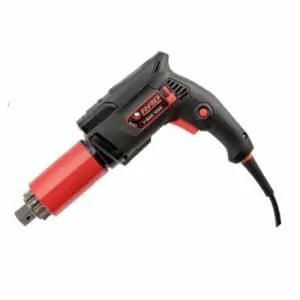

  • V-Rad Select

    PART NUMBER TOOL MODEL DRIVE SIZE TORQUE LOW (Nm) HIGH RPM WEIGHT (Kg) DIMENSION (mm) DIMENSION (mm) DIMENSION C (mm) DIMENSION D (mm)
    25633 V-RAD SELECT 1400 0.75″ 140 1400 8.8 3.9 305 64 74 203
    25634 V-RAD SELECT 2000 1.0″ 200 2000 5.5 5.9 311 69 74 203
    25636 V-RAD SELECT 4000 1.0″ 400 4000 3.8 6.2 343 79 79 203
    Read moreDone
