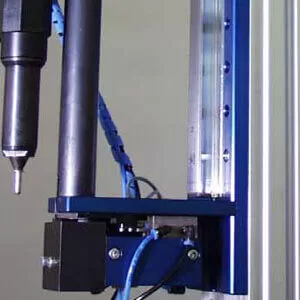

Fast Facts:
- Compact, lightweight placing head can be mounted separately and work in any position.
- Modular design of blow feed unit and PLC control cabinet.
- Modular component design allows for quick and simple integration into assembly lines.
- Can work as a standalone unit.
- Integral processing diagnostics at all stages with clear and simple PLC displays
- Continuous fastener feed with average cycle time of approximately 5 seconds.
- Ideal for high-volume production lines.
-

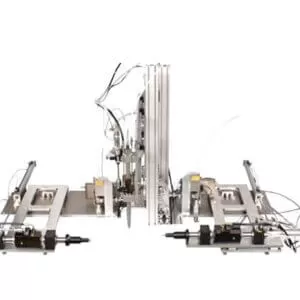

Fast Facts:
- High-speed, highly controlled assembly.
- Synchronous fastener placement.
- Fixtured tooling reduces assembly time.
- Modular assembly technology reduces maintenance costs.
- Diagnostics capability improves quality control, encourages preventive maintenance.
- Can be readily integrated into existing production facilities
-

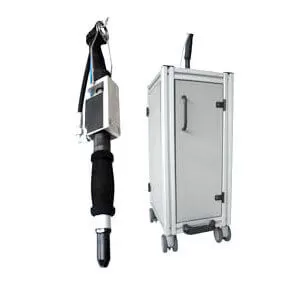

Fast Facts:
- High-speed, highly controlled assembly.
- Smooth and shock-free riveting.
- Simple to operate.
- High mobility.
- Easy integration into the production process.
- Ergonomic design.
-
Fast Facts:
- Fully automatic fastener feed
- Can be used in combination with robots, NC-axis, or other transfer systems
- Freely configurable to suit application requirements
- Step feeder to orient and feed fasteners without damage
- Can accept quick-release nose equipment
- Reliable and efficient autofeed equipment
- Riveting cycle completely monitored by SPC and visualized on the operator interface
- Process diagnostic options by monitoring system
- Variety of head configurations to suit application needs
-
Fast Facts:
- Mobility which eliminates the need for expensive support equipment
- Easy to use tool-less nose housing and collet
- Long-Lasting 20V Li-Ion 4.0Ah Battery powered by DEWALT with only a 30 minute charge time
- Ergonomic soft-grip handle for operator comfort and improves access around structures
- Rapid placing capability reduces assembly time and money
- Powerful 8.9 kN pulling force and 25mm stroke
-
Fast Facts:
- Improves riveting cycle times which improves productivity.
- Creates single-handed operation leaving one hand free.
- Hopper is refillable in less than 5 seconds.
- Holds up to 1000 1/8″ rivets making refills infrequent.
- Sets 1/8″, 5/32″, or 3/16″ (3.2, 4.0, or 4.8 mm) diameter rivets.
- Reduces operator fatigue.
- Reduces clean-up.
Specifications:
- Height: 13.25” (337 mm)
- Length: 21.75” (546 mm)
- Width: 8.75” (223 mm)
- Weight: 23 lbs (10.5 kg)
- Air Pressure: 70-90psi (4.8-6.1 bar), dry filtered
- Power Supply: 110 VAC, 50-60 Hz (0.5 Amp) standard flange
