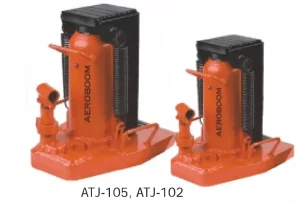

Toe Bottle Jacks

Toe Bottle Jacks

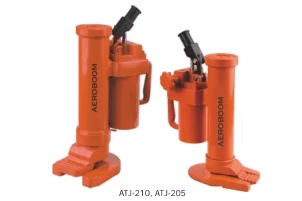

Toe Bottle Jacks - Image 2

Model Capacity (Ton) Min. Height (mm) Max. Height (in) Weight Toe Head Toe Head Toe Head Kg ATJ-102 2 3 16 238 128.5 349 8 ATJ-105 5 6 22 298.45 141.4 409.5 24 ATJ-110 10 14 28.5 333.5 173 460.5 837.9 FEATURES | ATJ-2 SERIES: Complies with ANSI/ASME B30.1, CE/GS standards. Compact and stable construction.…

Description

FEATURES | ATJ-1 SERIES:
  1. Complies with ANSI/ASME B30.1, CE/GS standards.
  2. Designed for lifting loads with very low minimum clearance (foot) or high clearance (head).
  3. Can be used in confined spaces.
  4. Built in safety valve for overload protection.
  5. Features spring assisted return and over travel protection on 5 and 10 ton models.
  6. Forged base and cylinder to assure strength.
