POP Open-End Rivets

Fast Facts:

  • Design of the stem head ensures positive retention after installation
  • Wide range of diameters.
  • Wide range of lengths suitable for material thicknesses up to 26mm.
  • Countersunk (120°) heads available.
  • Break-head mandrels available in most sizes.
  • Blind hole, one-sided installation capability.
Body Material Mandrel Material Head Style
Dome Head Large Flange Countersunk
5052 Aluminum Aluminum x x x
5056 Aluminum Steel x x x
5056 Aluminum Steel x x x
C1006-1010 Steel Steel x x x
300 Series Stainless Steel Stainless Steel x x x
300 Series Stainless Steel Steel x x x
110 Copper Steel x
Nickel-Copper Alloy (Monel) Steel x   x

Description

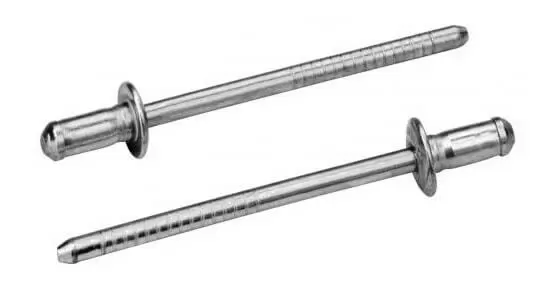

POP Open-End rivets are hollow blind rivets pre-assembled onto a headed pin or mandrel.

When set, POP open-end rivets resemble conventional tubular rivets, but unlike tubular rivets, the mandrel head is retained within the body of the rivet.

These large-flange rivets give wide load spread, and are available in aluminum and nickel-copper alloy. The nickel-copper option is particularly suited for marine and other corrosive atmospheres.

Providing strong, low-cost fastenings, POP open-end rivets do well in most industrial riveting applications where materials to be fastened do not have high load-bearing requirements.
