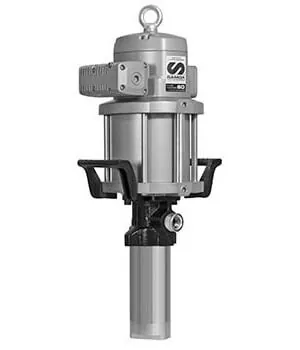

Pneumatic Piston Oil Pump, Pumpmaster 60, Pm60 – 6:1, Stub, Npt

Technical Data

Air motor stroke 100 mm (4 “)
Fluids Hydraulic oil, Lubricant oil, Transmission fluid, Gear oil
Air consumption 1100 NL/min (38.8 scfm)
Weight 19 kg (42 lb)
Cycles per litre (aprox.) 60 cycles
Noise level 80 dB
Maximum free flow delivery (SI) 100 l/min, 100 l/min, 26.4 gal/min
Wetted materials NBR, Polyurethane, Nickel, Cast iron, Aluminium, Steel
Delivery per cycle 35 l (9.25 gal)
Fluid outlet 3/4″ NPT (F)
Maximum outlet pressure 72 bar (1044 psi)
Pressure ratio 6:1
Delivery 35 l/min (9.2 gal/min)
Fluid inlet type Ball check
Air pressure operating range 1.5 – 12 bar (21.75 – 174 psi)
Air inlet 1/2″ NPT (F)
Air motor effective diameter 150 mm (6 “)
Total height 716 mm (28.2 “)
Pump mounting Universal stub pump
Tube height 200 mm (7.9 “)
Fluid inlet 1 1/2″ NPT (F)

Description

PM60 series air operated piston pumps. Double acting air operated medium pressure and high delivery pump, for large installations with simultaneous operation outlets and applications that require large, constant delivery rates. Built in port for optional pressure relief valve (PN 609 007). Flange mounted pump. Maximum air consumption with 5 bar (72 psi) air inlet pressure and 60 cpm. Maximum noise level measured at 1 m (3.3′) from the pump, 7 bar (102 psi) air pressure and free delivery.
