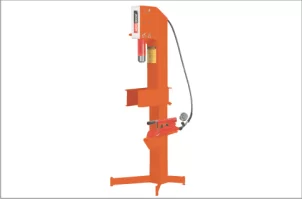

C-Frame Press

Capacity (ton) Type Cylinder Used Stroke (mm) Cylinder Model Model No. Speed Advance Pressing Type Pump Pump Model Weight (kg)
25 Single Acting 159 ARC-256 APM256C 3.3mm  /stroke 0.8mm /stroke Hand P-109 108

Description

Features:
  • Can be bench mounted or on optional pedestal base.
  • Bench mount require less than 1.4 sq. m. of space on optional pedestal, only 0.4 sq m.. of floor space is needed.
  • Open Throat design makes loading and unloading of work easy.
  • Cylinder head adjusts to three convenient working positions, providing up to 514mm  of “Daylight”.
  • Hydraulic cylinder delivers a 159 mm stroke, is driven by a P-109 two-speed hand pump.
